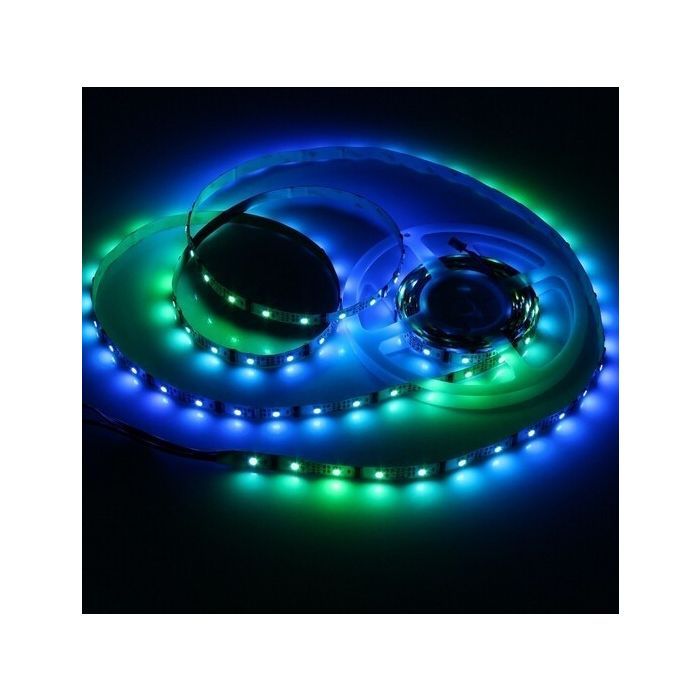

Our DC 5V 8806 LED strips are amazing and super bright. There are 52 RGB LEDs per meter, and you can control
each LED individually! You can set the color of each LED’s red, green and blue component with 7-bit PWM precision
(so 21-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can
shorten or lengthen the strip. Only 2 digital output pins are required to send data down. The PWM is built into each
chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you
Built in 1.2 MHz high speed 7-bit PWM for each channel – that means it can do 21-bit color per LED (way more than
the eye can easily discern). Once you set the brightness level for the LEDs, your microcontroller can go off and do
other things, no need to continuously update it, or clock it. The best part is that compared to the WS2801 which can
only run one LED at a time, this chip can drive 2 RGB LEDs which means the price stays the same as the older HL
1606 strip, nice!
The strip is made of flexible PCB material, and comes with a waterproof sheathing.
You can cut this stuff pretty easily with wire cutters, there are cut-lines every 2.5″/6.2cm (2 LEDs each). Solder to the
0.1″ copper pads and you’re good to go. Of course, you can also connect strips together to make them longer.
IC type: LPD8806
IC quantity: 26 ICs per meter, 5 meters length, total 130 ICs.
LED type: RGB SMD 5050 LED
LED quantity: 52 LEDs per meter, 5 meters length, total 260 LEDs.
Pixel quantity: 1 LED is 1 Pixel. 52 Pixel per meter, 5 meters length, total 260 Pixel.
Dimension: L5000 x W14 x T2.5 mm The width of the Non-Wateproof Strip's PCB is 15MM; The width of the waterproof
strip's PCB is 17mm.
Working voltage: DC 5V
Viewing angle: 120 degrees
PCB color: White
Power consumption: approx 16 watts per meter, 5 meters length, total is approx 90W.
Grey level: 256 levels
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Package:
1 Roll of 5 Meters (16.4ft) LPD8806 DC 5V Digital Addressable LED Strip 52 LED/M 26ICs/M Programmable Light
You must use a 5V DC power supply to power these strips, do not use higher than 6V or you will destroy the entire strip.
CE and RoHS approved
