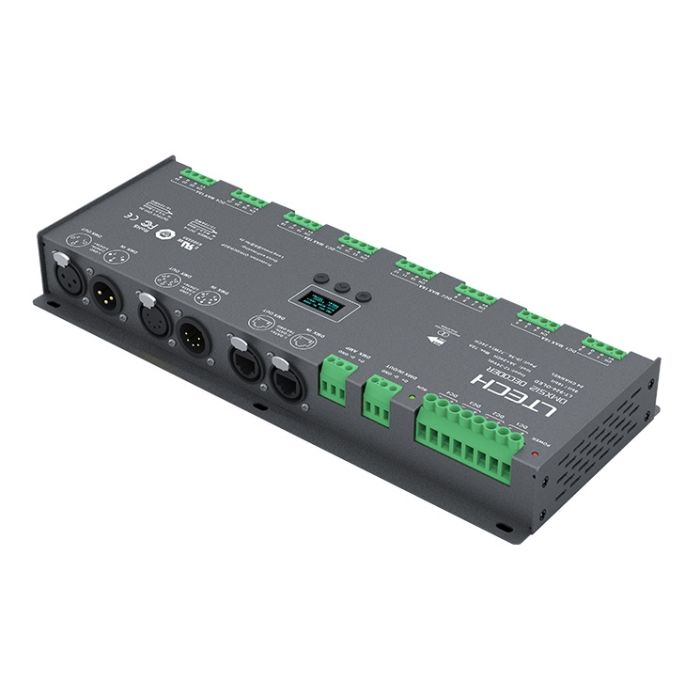

LT-924-OLED 24CH CV DMX Decoder RDM With Display Ltech Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Features

Designed for Hi-power multiple channels application, 24 channels output, and maximum 3A current per channel, up to 1728W output power

Easy operation with OLED screen and touch buttons.

3 kinds of mode optional: single color, color temperature, RGB.

Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).

With RDM remote management protocol, the operations can be completed via the RDM master console,
such as parameters browsing&setting, DMX address setting, equipment recognition, etc.

With firmware upgrade function.

With short circuit, over current and over-heat protection, as well as warning function when fault.

With power-on state management and fast self-testing function.

16bit (65536 levels) / 8bit (256 levels) grey level optional.

Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.



Model: LT-924-OLED

Input Signal: DMX512/RDM

Input Voltage: 12~24V DC

Current Load: 3A×24CH Max 72A

Output Power: (0~36W...72W)×24CH Max.1728W

DMX Interface: 3-pin XLR, 5-pin XLR, RJ45, Green terminal

Control Mode: Dimming/CT/RGB

Dimming Curve: 0.1~9.9

Grey Level: 8bit (256levels) / 16bit (65536levels)

Photoelectric Isolation: Yes

Protection: Short circuit / Over current / Over-heat

Working Temperature: -30°C~65°C

Dimensions: L300×W122×H39mm

Package Size: L313×W127×H41mm

Weight (G.W.) : 1180g

Package Included:

1 Piece of LT-924-OLED 24CH CV DMX Decoder RDM With Display Ltech Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
