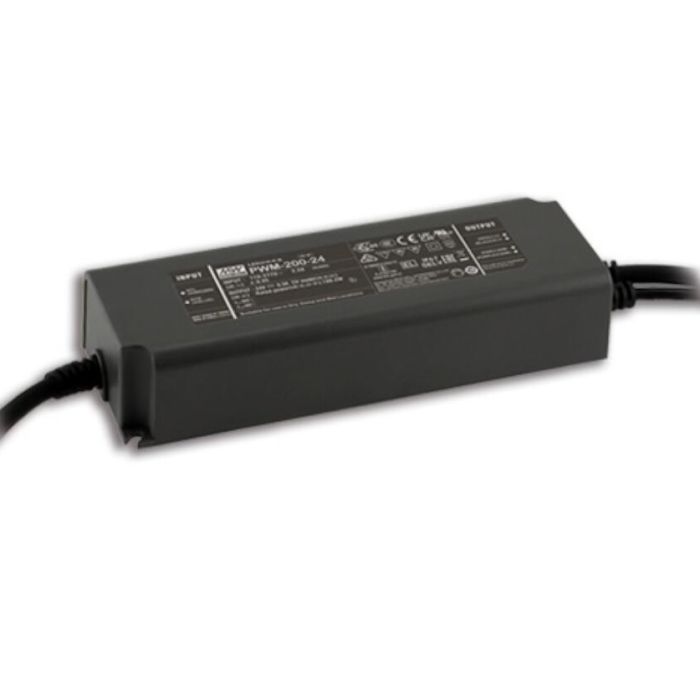

Mean Well PWM-200 200W Series Power Supply CV PWM Output Led Driver

Features

Constant voltage PWM style outpu t

with frequency up to 4kHz compliant IEEE1789-2015

Plastic housing with class II and PFC design

Emergency lighting application is available according

 to IEC61347-2-13

Standby power consumption <0. 5W

Fully encapsulated with IP67 level

Function options: 3 in 1 dimming

(dim-to-off and Isolated Design)/DALI-2

Minimum dimming level 0.2% for DA2 type

Typical lifetime >50000 hrs and 5 years warranty

Description

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output,

which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of

LED strips. PWM-200 operates from 1 00~ 305VAC and offers models with different rated voltage ranging

between 12V and 48V. Thanks to the high efficiency up to 94% with the fanless design, the entire series is

able to operate for -40C ~ +85C case temperature under free air convection. The entire series is rated

with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-200 is equipped

with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips

applications.

Package Included:

1 Piece of Mean Well PWM-200 200W Series Power Supply CV PWM Output Led Driver



CE and RoHS approved
