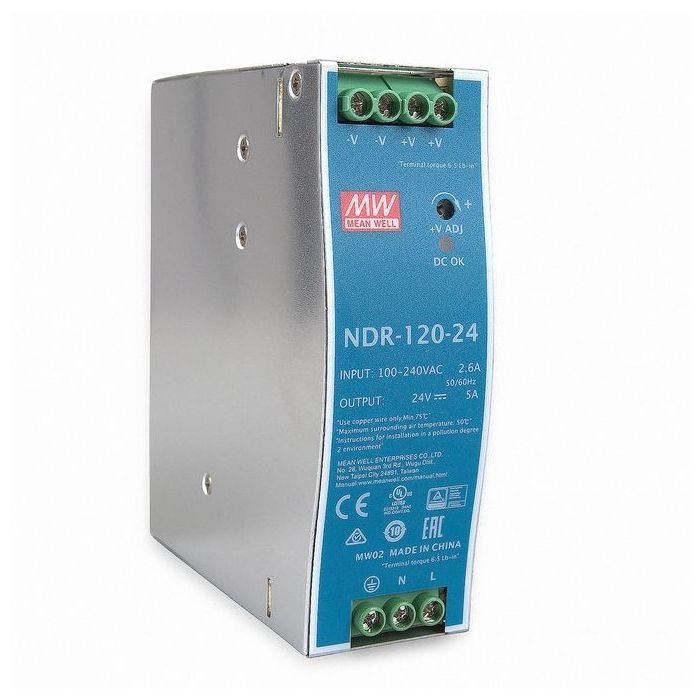

NDR-120-24 Mean Well 24V 120W Industrial DIN RAIL

Features

Universal AC input / Full range

Protections:Short circuit / Overload / Over voltage
/ Over temperature

Cooling by free air convection

Can be installed on DIN railTS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

100% full load burn-in test

switching power supply, DIN mounting, 24V / 10,0A / 240W

switching power supplies with built-in noise filters. Low ripple,

closed design with contact-protected screw. Overload protection by switching off,

auto recovery. Short circuit protection. 100% burn-in test under full load. For DIN rail mounting

Power: 240 W

input: 85 - 264 VAC, 120 - 370 VDC

Output: 24V / 10.0A

Specifications

General temperature max.-10 ... +70 ° C

type switching power supply design

DIN rail

Electrical values ​​

output voltage 24 V DC

current 10 A

input voltage from 85 to 264 VAC power 240 W

input voltage 120 - 370 VDC

efficiency & gt; 84%

inrush current 50 A

ripple 80 mV

embodiment

mounting DIN rail

Special

short-circuit proof yes

overload protection yes

Fittings /

connection screw

Package Included:

1 Piece of NDR-120-24 Mean Well 24V 120W Industrial DIN RAIL

2 Years Warranty

CE and RoHS approved
