NL503 Leynew Led Controller Touch Full Color Decoder Programmable Time Control

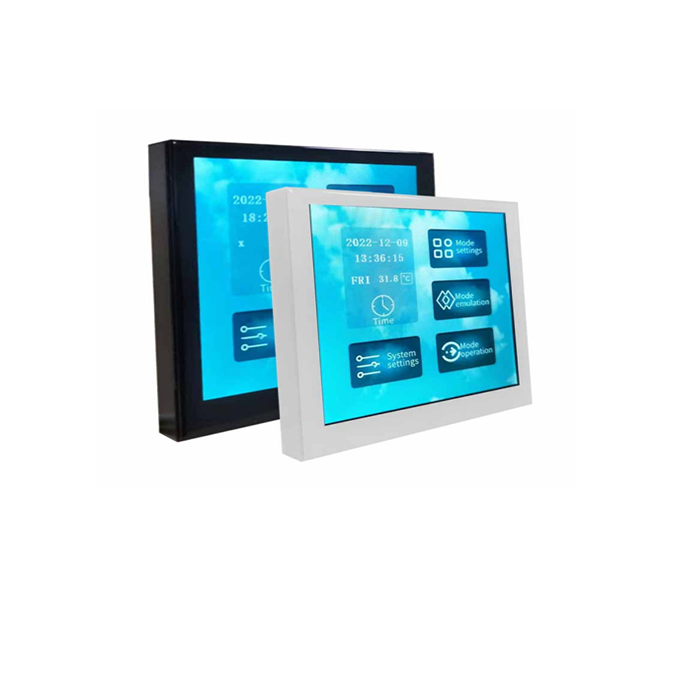

Touch full color (4inch 86*86 screen) Programmable Time controller NL503

Touching the full-color programmable time controller can make the load output change with time. Customers can customize the

schedule mode they want through the display screen, edit, preview, delete schedules and other functions. The time controller can

control the change of up to five load LEDs. The adjustment of lighting changes can be applied to plant lights, light box advertisements,

stage sets, home decoration, etc.

Technical Parameters

Working temperature:-20-60℃

Supply voltage:DC12-24V

static power:< 1W

net weight:140g

gross Weight:220g

External dimension:86MM*86MM*36MM

Packing dimension:L110ΧW110ΧH56 mm

Output: 5 channels

Max load current:20A

Connecting Mode:Common anode

the controller output frequency of 600 hz

Package Included:

1 Piece of NL503 Leynew Led Controller Touch Full Color Decoder Programmable Time Control



CE and RoHS approved
