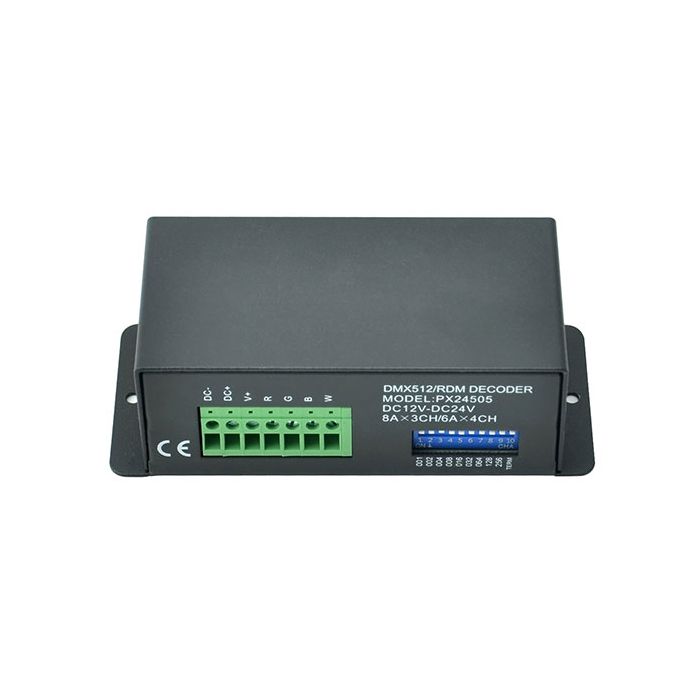

PX24505 Euchips 288-576W 12-24V DC RJ45 XLR-3 CV DMX Led Decoder

Short Description:

Item No.:PX24505

Input Voltage:12-24

Output Current:6A*4CH / 8A*3CH

Output Voltage:12-24

Output Power:288-576

Dim Mode:DMX512 1990 /RDM 2009

G.W.:344

Size:125*54*41

6A*4ch/8A*3ch 288~576W 12-24VDC RJ45 & XLR-3 Constant Voltage DMX Decoder

Introduction

PX series adopt the advanced micro-computer control technology and converted the DMX512,

RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels

output for option and each channel able to achieve 256 gradations of controlling, and also it

can be used as the connector of PC digital light controller and analog light modulator.

It is mainly used for the controlling of buildings & lights applied LED.

Feature

1. Meets RDM512/1990,RDM /2009 protocol

2. Supported RDM parameters:

DISC_UNIQUE_BRANCH

DISC_MUTE

DISC_UN_MUTE

DEVICE_INFO

SOFTWARE_VERSION_LABEL

DMX512/RDM_START_ADDRESS

IDENTIFY_DEVICE

MANUFACTURER_LABEL

SUPPORTED_PARAMETERS

3. In DMX mode set the DMX address manually by switch; in RDM mode, the host computer address allocation

4. Constant voltage output, the maximum current of 6A /ch for RGBW decoder and 8A/ch for RGB decoder

5. 256 grade brightness adjustment

6. Short-circuit, over load, over temperature protections

Package Included:

1 Piece of PX24505 Euchips 288-576W 12-24V DC RJ45 XLR-3 CV DMX Led Decoder


CE and RoHS approved
