It is a good choice to use PX series DMX512 decoder. With advanced micro-computer control
Technology, PX series convert the widely used DMX512/1990 signal to analog signal.
Support DMX dimming function (prior) and 0~10V analog signal dimmer.
Features:
Meets DMX512/1990
1 output CH., can drive 6A
With control system, can express perfect effect
Can set the DMX addess freely
Modularizing, can be combined with LED module neatly
The PX24600 is a single channel dimmer that can be controlled by a 12-24VDC DMX control system or can
be connected to a switch or automated home system using a 0-10V Analog control, such as Lutron, Crestron,
or Control 4. One light or strip of single color lights can be dimmed using this product. Intended for use with
12 to 24VDC systems. Includes one 6' Cat5 cable with RJ45 jack.The PX24600 is a single channel dimmer that
can be controlled by a 12-24VDC DMX control system or can be connected to a switch or automated home
system using a 0-10V Analog control, such as Lutron, Crestron, or Control 4. One light or strip of single color
lights can be dimmed using this product. Intended for use with 12 to 24VDC systems. Includes one 6' Cat5
cable with RJ45 jack.
Specifications
Model DMX Driver PX24600
0~10V Dimmer
Dimensions 6.95"L x 1.625"W x 1.25"H
DMX Type DMX 512, DMX 1990
DC Power DMX: 12 to 24VDC 6A per Channel Max
Watts 72W/12VDC, 144W/24VDC Max
Package Included:

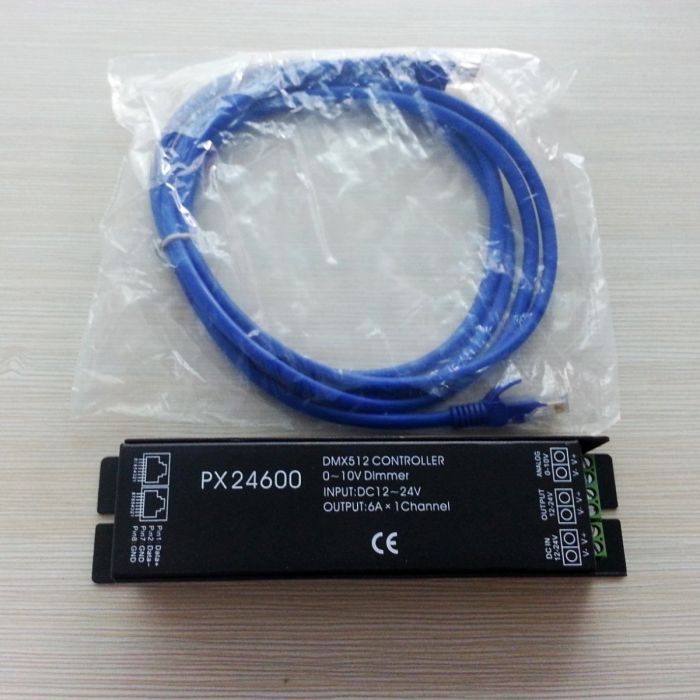

1 Piece of PX24600 DMX Driver
1 Piece of 2 Meters Cat5 Cable
CE and RoHS approved
