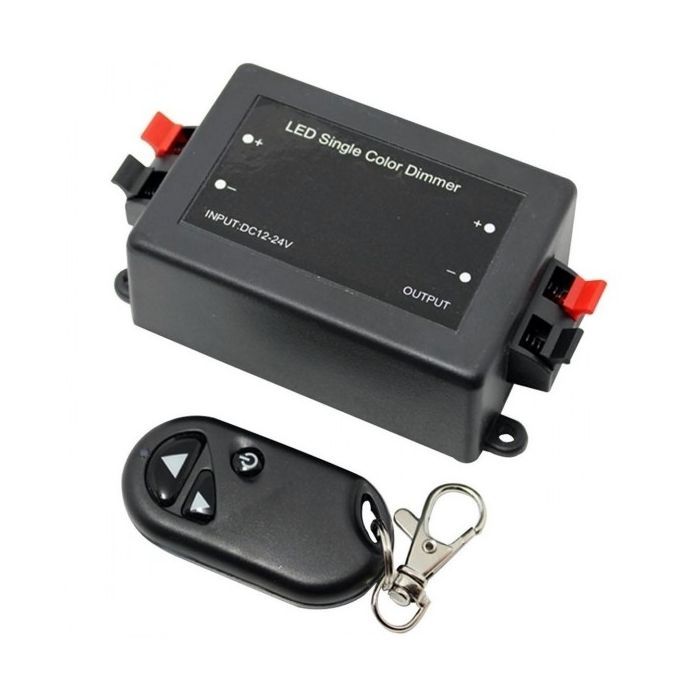

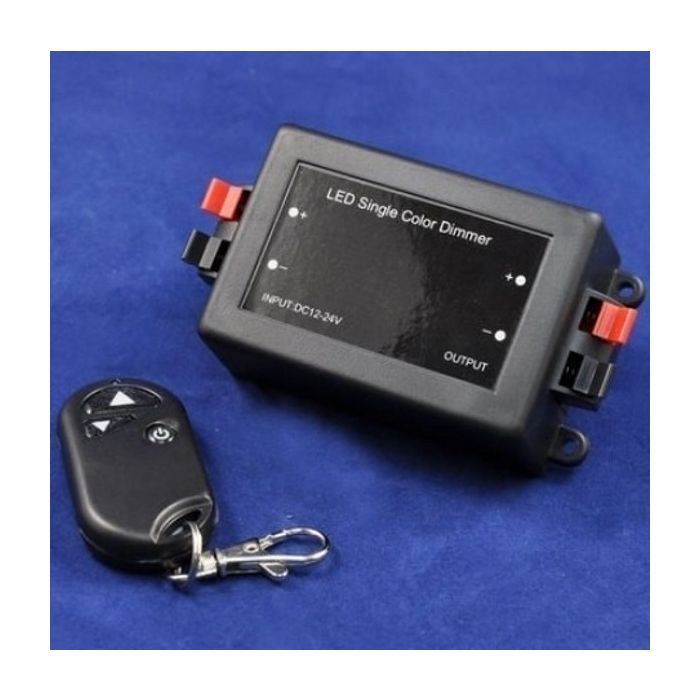

This RF remote controlled led dimmer can be used to dim single color LED Modules, LED Strips,
and any one color LED product with power requirements.
RF dimmer is a controller that can adjust brightness infinitely, its control mode is wireless control,
you could adjust light to the appropriate lighting brightness in accordance with your actual need.
Also with matching code function, users can replace the remote control by themselves
(to prevent users can not operate because of damage or loss of the remote control).
Working temperature: -20~60 °C
Working voltage: DC 12V to DC 24V
Output: 1 channel
External dimension: L110*W56*H34 mm
Packing size: L122*W85*H42mm
Net weight: 100g
Gross weight: 130g
Rated load current: <8A
Power output: 12V<96W, 24V<192W
Package Included:
1 Piece of LED Dimmer
1 Piece of RF Remote
1 Piece of User's Manual
Adopt wireless control,"up" is for increasing brightness,"down" is for reducing brightness, there
are 256 steps gray scales.
Operating Instructions of matching code:
Unscrew the screws at the back of the controller, open the shell, pull out the PCB, connect with load light,
and then power wire, after ensure short circuit can not occur between connecting wire, turn on the power,
find the touch button on the PCB (figure 1), press the button (figure 2), some versions have not button,
just two solder joints (figure 3), you can make the two solder joints short circuit with electrical conductive tweezers or cutting pliers (figure 4).
At the same time, press any button on the remote control that you want to match code, when the remote can
control the controller, immediately release the touch button; if it is solder joints, immediately release tweezers or
cuttings pliers, thus make the solder joints open circuit, then if the remote can control the controller,
it illustrates that it matches code successfully, otherwise you need to repeat the matching code operation,
until match code successfully. After matching code successfully, you can assemble the controller, and then use it.
CE and RoHS approved
