RF Wireless Remote Panel RGB LED Controller adopts the advanced micro-control unit, it is used for controlling
a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp,
glass curtain wall light and so on; It has many advantages such as easy connection and simplicity to use;
According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Working temperature: -20~60 celsius
Working voltage: DC12V to 24V
Output: 3 channels
Connection mode: common anode
External dimension: L120 * W75 * H31 mm
Packing size: L145 * W95 * H50 mm
Net weight: 225g
Gross weight: 285g
Static power: <1W
Output current: <2A (each channel)
Output power: 12V<24W, 24V<48W

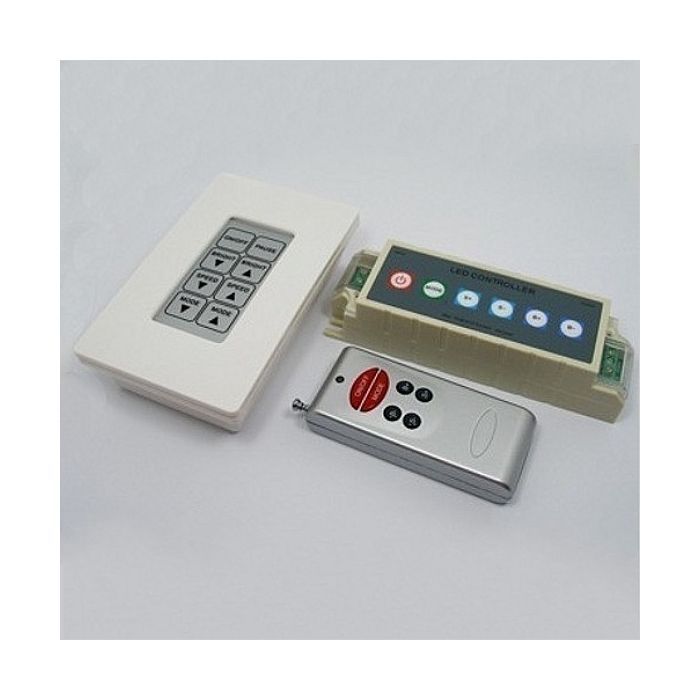

Package Include:
1 Piece of RGB LED Controller
1 Piece of RF Control Remote
1 Piece of Wall Mounted Controller
Direction for Use
1.Connect the load wire at first, following by the power wire; Please ensureshort circuit can not occur
between connecting wire before you turn on thepower;
2.There are six keys on the remote controller panel, the function of each keyas follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button, there are 21 modes of change for you to choose;
B+: A brightness control button, the step of the brightness add 1 by eachpressing, a total of 256 steps;
B-: The step of the brightness subtract 1 by each pressing;
S+: The step of the speed change add 1 by each pressing, a total of 100 steps;
S-: The step of the speed change subtract 1 by each pressing.
3. There are eight keys on wall mounting panel, the function of each key asfollows:
ON/OFF: switch button;
PAUSE: can play or pause led changing, easy to observe the static effect of theled;
BRIGH +: increase entire brightness, a total of 10 steps;
BRIGHT-: increase entire brightness, a total of 10 steps;
SPEED+: increase the rate of change, a total of 10 steps (its period is from 5Sto IH);
SPEED-: reduce the rate of change, a total of 10 steps;
MODE+: select button, select up a total of 21 models;
MODE-: select button, select down.
CE and RoHS approved
