SE-10-350-700-W1M SE-12-100-400-W1M SE-12-350-700-W1M Ltech Dmx Decoder Driver Led Controller Control Dimmer

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

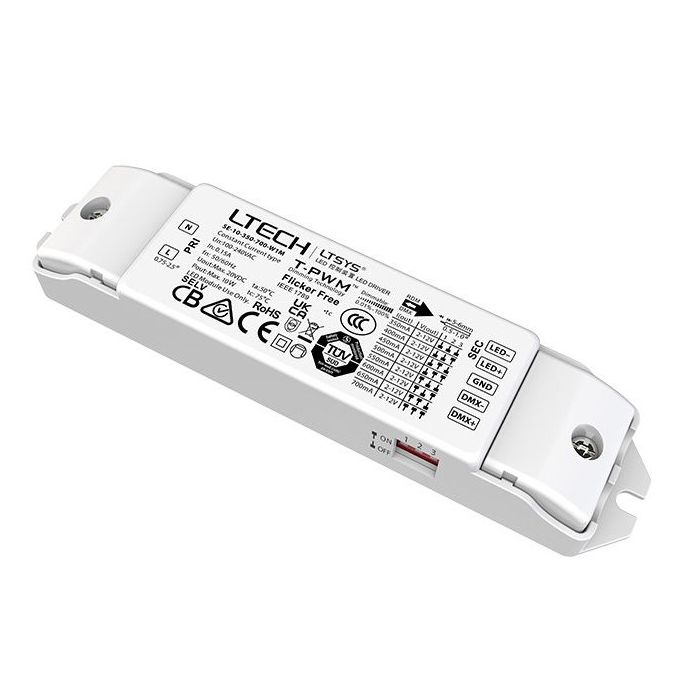

SE-10-350-700-W1M

Rubycon capacitor

Dimming Interface:    DMX512/RDM

Input Voltage:    100-240Vac Max. 265Vac

Power Factor:     PF>0.95/115Vac , PF>0.80/230Vac,at full load

Efficiency:    75%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    2-12Vdc

Output Current:    350-700mA

Output Power:    0.7W~8.4W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,UKCA,ROHS

Warranty:    5 years

Sec. output:


Pout(Max.)      Vout(DC)      Constant(DC)

0.7-4.2W            2-12V              350mA

0.8-4.8W            2-12V             400mA

0.9-5.4W            2-12V             450mA

1-6W                  2-12V             500mA

1.1-6.6W           2-12V             550mA

1.2-7.2W           2-12V            600mA

1.3-7.8W           2-12V            650mA

1.4-8.4W           2-12V             700mA


SE-12-100-400-W1M

Rubycon capacitor

Dimming Interface:    DMX512/RDM

Input Voltage:    100-240Vac Max. 265Vac

Power Factor:     PF>0.97/115Vac , PF>0.85/230Vac, at full load

Efficiency:    82%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    10-42Vdc

Output Current:    100-400mA

Output Power:    1W~12W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,UKCA,ROHS

Warranty:    5 years

Sec. output:

Pout(Max.)     Vout(DC)    Constant(DC)

1-4.2W            10-42V            100mA

1.5-6.3W         10-42V            150mA

2-8.4W            10-42V            200mA

2.5-10.5W     10-42V             250mA

3-12W           10-40V            300mA

3.5-12W        10-34V            350mA

4-12W            10-30V           400mA


SE-12-350-700-W1M

Rubycon capacitor

Dimming Interface:    DMX512/RDM

Input Voltage:    100-240Vac Max. 265Vac

Power Factor:     PF>0.97/115Vac , PF>0.85/230Vac, at full load

Efficiency:    81%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    10-24Vdc

Output Current:    350-700mA

Output Power:    3.5W~12W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,UKCA,ROHS

Warranty:    5 years

Sec. output:

Pout(Max.)       Vout(DC)        Constant(DC)

1.05-8.4W          3-24V              350mA

1.2-9.6W            3-24V              400mA

1.35-10.8W       3-24V              450mA

1.5-12W            3-24V              500mA

1.65-12.1W       3-22V             550mA

1.8-12W          3-20V               600mA

1.95-12W        3-18.5V              650mA

2.1-12W          3-17V               700mA


Package Included:

1 Piece of Ltech DMX LED Driver

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
