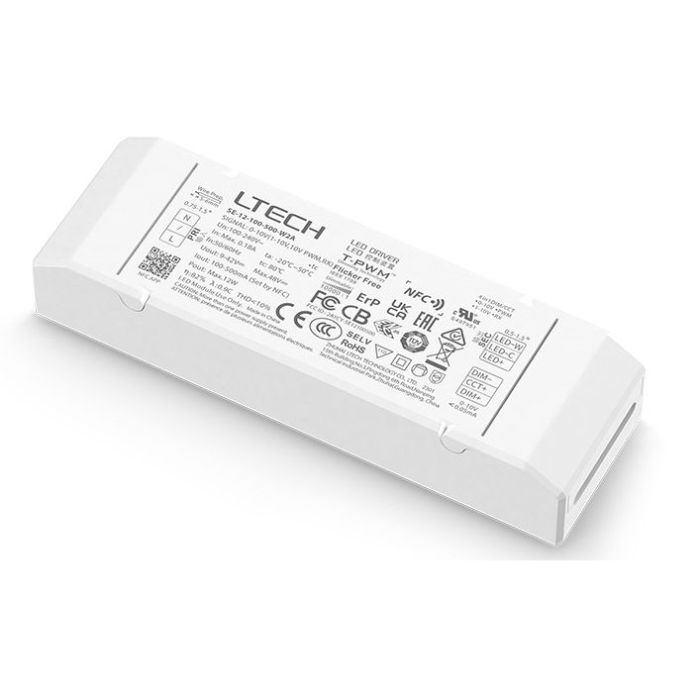

SE-12-100-500-W2A Ltech NFC 0/1-10V Tunable White Led Driver Controller

$18.50
In stock
SKU
SE-12-100-500-W2A Ltech NFC 0/1-10V Tunable White Led Driver
  • Buy 50 for $17.39 each and save 6%

For more LTECH 0/1-10V, pls check here: https://www.vipfactoryprice.com/ltech-controller/letch-0-1-10v.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

SE-12-100-500-W2A Ltech NFC CC 0/1-10V Tunable White Led Driver Control Dimmer Decoder Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

Ultra small, thin and lightweight, screwless end cap.

Change the output current, dimming mode and other parameters via the APP.

Adjustable output current with 1mA step.

Automatically recognize 0-10V and 1-10V input signal.

Ultra-low consumption of 0-10V ports < 0.05mA.

Soft-on and fade-in dimming function enhances your visual comfort.

T-PWMTM super deep dimming technology, 0.01% dimming depth.

The whole dimming process is flicker-free with high frequency exemption level.

Comply with the EU’s ErP Directive, networked standby<0.5W.

When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.

Overheat, over voltage, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Normal service life can reach 100000 hours.


Dimming Interface:    0-10V (1-10V, 10V PWM, RX)

DC Voltage Range:    120-300Vdc

AC Voltage Range:    100-240Vac

Input Voltage:    115Vac/230Vac

Power Factor:     PF>0.95/115Vac , PF>0.90/230Vac, at full load

Efficiency:    84%

Fluctuation Level:    No visible flicker/High frequency exemption level

Output Voltage:    9-42Vdc

Output Current:    100-500mA

Output Power:    0.9W~12.15W

Dimming Range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS

Warranty:    5 years(Rubycon capacitor)

Package Included:

1 Piece of SE-12-100-500-W2A NFC CC 0/1-10V Tunable White LED Ltech Driver Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
