SE-20-100-700-W1D 20W 100-700mA NFC CC DALI DT6 LED Controller Driver Ltech

Be the first to review this product
$17.65
In stock
SKU
SE-20-100-700-W1D 20W 100-700mA NFC CC DALI DT6 LED
  • Buy 50 for $17.12 each and save 3%
Add to Compare

For more LTECH DALI Controller Driver, pls check here: https://www.vipfactoryprice.com/ltech-controller/ltech-dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.vipfactoryprice.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vipfactoryprice.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vipfactoryprice.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here:  https://www.vipfactoryprice.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vipfactoryprice.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on vipfactoryprice.com

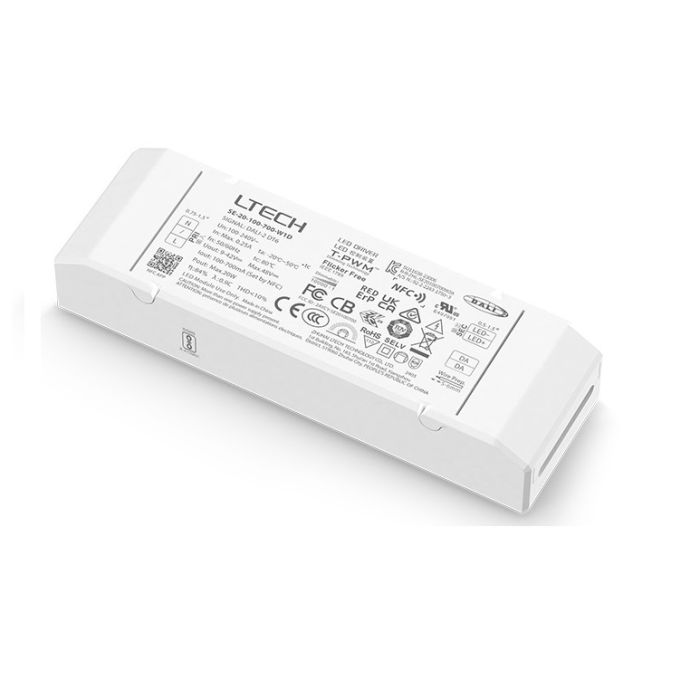

main product photo

SE-20-100-700-W1D 20W 100-700mA NFC CC DALI DT6 LED Controller Driver Ltech

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

Ultra small, thin and lightweight, screwless end cap.

Change the dimming interface, output current, DALI address and other parameters on the NFC programmer or via the App,

and sync the parameters to the driver.

Set the DALI group, scene in the advanced DALI template.

Set the output current down to 1mA.

DALI bus standard IEC62386-101, 102, 207.

Class 2 LED driver, Safety Extra Low Voltage (SELV).

Soft-on and fade-in dimming function enhances your visual comfort. T-PWMTM dimming technology allows quality

and high-end lighting. The whole dimming process is flicker-free with high frequency exemption level.

Comply with the EU’s ErP Directive, networked standby<0.5W. Multiple current levels, wide voltage range,

suitable for LEDs with different power

When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.

Overheat, over voltage, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures. Normal service life can reach 100,000 hours.

5-year warranty (Rubycon capacitor).

Rubycon capacitor

Dimming Interface: DALI DT6

DC Voltage Range: 120-300Vdc

AC Voltage Range: 100-240Vac

Input Voltage: 115Vac/230Vac

Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load

Efficiency: 86%

Fluctuation Level: No visible flicker/High frequency exemption level

Output Voltage:    9-42Vdc

Output Current:    100-700mA

Output Power: 0.9W~20.4W

Dimming Range: 0~100%, down to 0.01%

Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS

Warranty: 5 years（Rubycon capacitor）

Package Included:

1 Piece of SE-20-100-700-W1D 20W 100-700mA NFC CC DALI DT6 LED Controller Driver Ltech

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
