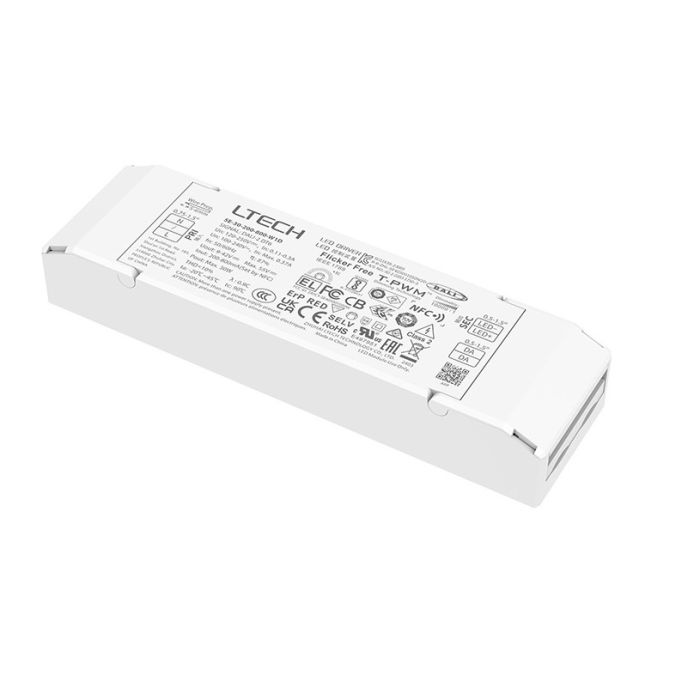

SE-30-200-800-W1D SE-40-300-1050-W1D Decoder CC Ltech Controller Led DALI Driver Dimmer
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, DALI address and other parameters via the APP.
Set the DALI group and scene in the advanced DALI template via the APP.
Adjustable output current with 1mA step.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWMTM super deep dimming technology, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassI/II/III indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).
SE-40-300-1050-W1D
Rubycon capacitor
Dimming Interface: DALI DT6
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.9/230Vac, at full load
Efficiency: 88%
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 300-1050mA
Output Power: 2.7W-40W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS
Warranty: 5 years（Rubycon capacitor）
SE-30-200-800-W1D
Rubycon capacitor
Dimming Interface: DALI DT6
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.9/230Vac, at full load
Efficiency: 87%
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 200-800mA
Output Power: 1.8W-30W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS
Warranty: 5 years（Rubycon capacitor）
Package Included:
1 Piece of Ltech LED DALI Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
