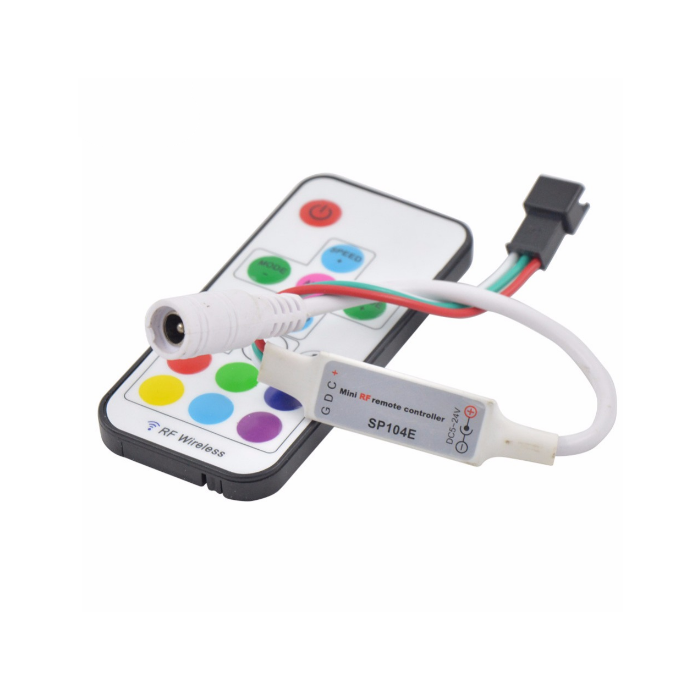

SP104E Mini-RF Controller 5V 12V 24V For SK6812 WS2811 APA102 RGB RGBW LED Lights
Specification:
Input voltage:DC5-24V
Control Light Style : Pls Choose, RGB or RGBW .
IC Control Style : Pls Choose,
WS2811, WS2812B, SK6812 or SK6812 RGBW .
Features:
With 75 kinds of patterns, which are vivid and beautiful;
Preventing reverse connection of power supply.
Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
RF Remote control ,long distance, mini size, wire connection is simple and very easy to use;
Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
With user setting saving functionality;
Brightness adjustable.
Preventing reverse connection of power supply.
Usage construction:
Matching: Continuously pressing the MATCH button 5 times until LED flash in white quickly to match the Remote
control with the receiving controller. Pressing the MATCH button for 5 times till LED flash in white slowly to un-match;
Reorder RGB: Differ from kinds of LED, The R G B keys may don't perfectly match to your LED, Reorder them if needed.
Continuously pressing the SETTING button 5 times until LED flash in white once and then turn into all white, Pressing
the R button until LED is red, Pressing the G button until LED is green, pressing the B button till LED is blue, then press
the SETTING button once to confirm your setting;
Catching: When in the AUTO mode, pressing the SETTING button once, and then press MATCH button once to catch the
Current pattern to stay and operate circularly.
Package include:
1 Piece of SP104E Mini-RF Controller 5V 12V 24V For SK6812 WS2811 APA102 RGB RGBW LED Lights
CE and RoHS approved
