Parameters:

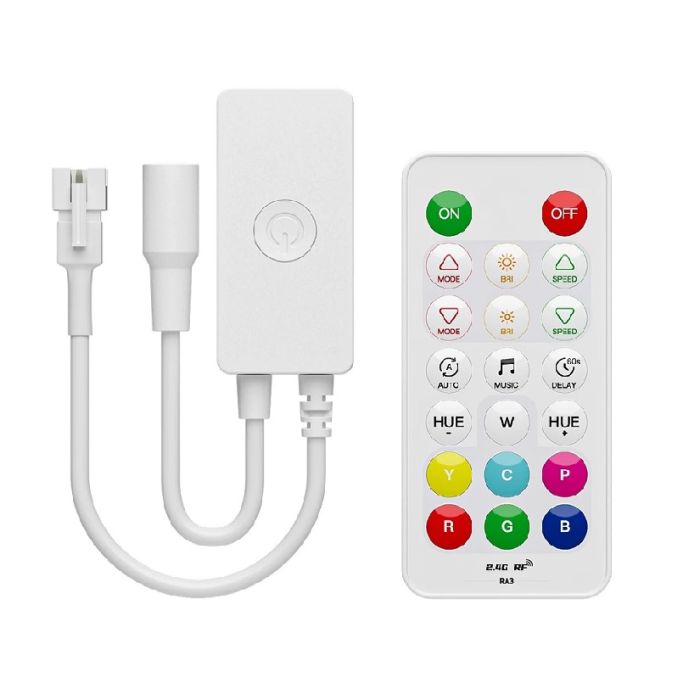

Controller name: Bluetooth music LED controller series;
Model: SP64XE (SP641E-SP64CE);
Working voltage: DC5V-24V;
APP: BanlanX(BT);
Music mode: mobile phone microphone, player streaming, onboard microphone;
Remote control: 2.4G remote control (RAX series) (standard);
Output signal: PWM (SP641E-SP645E), SPI (SP646E-SP64AE)
PWM+SPI (SP64BE, SP64CE);
Function introduction:
1, support mobile APP and 2.4G remote control device control;
2, compatible with a variety of music acquisition modes: mobile phone microphone, player streaming, onboard microphone;
3,PWM support 8KHZ high frequency PWM dimming;
4, support switch motor drawing effect and startup state selection;
5. SPI supports normal return-to-zero code single-wire driver IC, SP646E-SP648E, SP64BE-SP64CE;
6, support calibration channel sequence and timing switch; Support three-channel drive IC; SP649E supports four channels; SP64AE supports five channels;
7. Support OTA firmware upgrade;
8,5 major control page: dynamic page, static page, music page, custom page and setting page; Different models, different control pages;
9, support automatic connection, automatic reconnection and multi-device grouping;
10, the touch remote control can be set up partition control (can be divided into 4 areas), also can be unified control;
12, the whole series of products are powerful, built-in rich dynamic effect and music effect; Models complete, support almost all types of lamps.
Difference between SPI (with IC) strips and PWM (without IC) strips.
Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.
CE and RoHS approved
