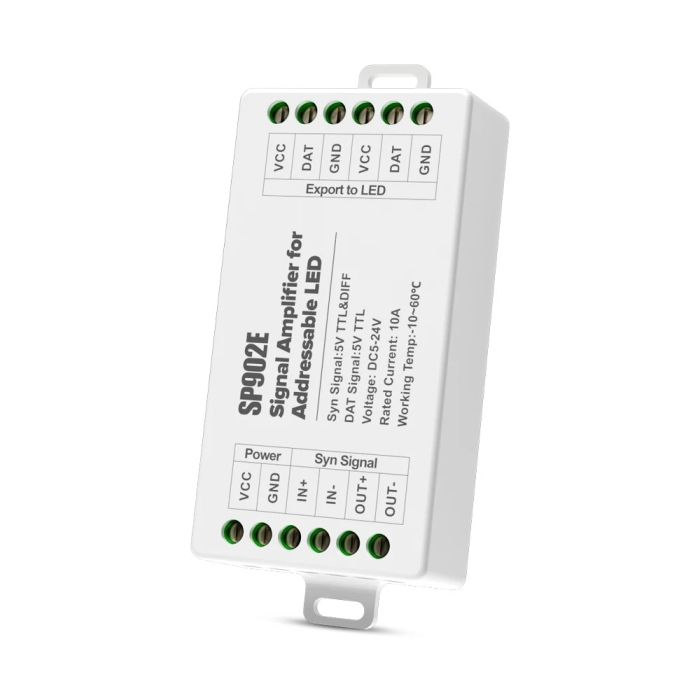

SP902E SPI Signal Amplifier Repeater For WS2812B WS2811 SK6812 Pixel Light 5-24V

$7.31
In stock
SKU
SP902E SPI Signal Amplifier Repeater For WS2812B WS2811

SP902E SPI Signal Amplifier Repeater 2 Channels WS2812B WS2811 SK6812 WS2814 RGBW RGB Pixel Addressable Matrix Panel Light 5-24V is a high-performance, energy efficient and widely used LED product.

Free Shipping Available to Worldwide. Huge Selection. Featured Collections. If you check out with DHL shipping, the parcel will arrive your address around 5 business days. You would easily find out the shipping time and shipping cost at the shopping cart without register.

If you need further information or help, Pls email us at order@vipfactoryprice.com

SP902E SPI Signal Amplifier Repeater For WS2812B WS2811 SK6812 Pixel Light 5-24V

This SPI signal amplifier is compatible with all kinds of 5V-TTL signal dual signals. It receives one signal and simultaneously

output 2 channels of signals. Each channel can control the same quantity of LED pixels as main controller.

It can output 2 channels for addressable LED strip with single data wire, such as WS2812B, WS2811, SK6812RGB, SK6812-RGBW,SM16703, etc.

Multiple signal amplifiers can be cascaded together synchronously. Particularly suitable for small and medium dream color

lighting projects. It can work with K-1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry pi, Arduino X2 music controller.

Parameter:
Working voltage: DC5V~24V
Working temperature: -20-60℃
Output: 2 channels
Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2814.
Static power consumption: <1W
Package: 1x SP902E Signal Amplifier

Precautions:
The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be

the same as the work voltage of your LED lights. If your lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply

The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.

2_Channels_WS2812B_0122_1

2_Channels_WS2812B_0122_2

2_Channels_WS2812B_0122_3

2_Channels_WS2812B_0122_4

2_Channels_WS2812B_0122_5

CE and RoHS approved
