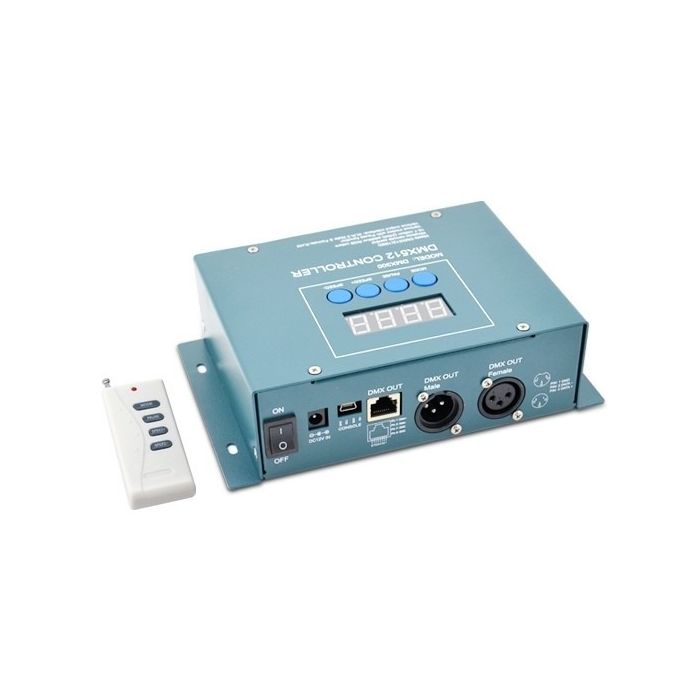

DMX512 Controller DMX300 LED Full Color Controller is a simple stand-alone DMX device controller with 30 preset modes.
Comes with a RF remote controller and an AC adapter. The remote controller uses radio wave.DMX300 is a full-color
LED control system which fouses on indoor and outdoor decorative lighting. It comprises scene-edit software and CTL
controller. You can edit various lighting effects by downloading the programs which edit according to your special requirement
from your PC. Lamp type can be Controlled: wall washing light, underground light, underwater light, strip light.
DMX300 is a full-color LED control system which fouses on indoor and outdoor decorative lighting. It comprises scene-edit
software and CTL controller. You can edit various lighting effects by downloading the programme which edit according to
your special requirement from your PC.This control system can fulfill 256 grey levels for each R,G,B color,totally 16.77 million
real full-color. With the wireless remote controller, you can achieve the mode change and speed adjustment very conveniently.
There are 30 modes and 8 levels of speed you can choose, and with the pause function,you can keep the fixed color optionally.
Note:As the battery can't be shipped,the battery is not included in this item.
Eight different speed level Automatic parameter memory
Can be re-programmed by software(Optional) Various output interface, XLR-3 Male & Female, RJ45 Convenient for wiring and installation
Good function at anti-jamming and auto-resumption.
Technical Parameter:
1. Input voltage: 12V (220/110V AC to 12V DC Power Adapter included) )
2. Power consumption: < 5W
3. Memory: 32KB
4. Output channel: 1 port
5. Transmission interface: DMX512(1990)
6. Transmition speed: 250Kbps
7. Pixels: 50 pixels, 170 pixels max.
8. Lamp type can be controlled: Wall washing light, Tube light, Cube light, Underground
9. Control mode: asynchronous full-color control
10. Remote distance: 50M
11. Description: fixed 30 modes, such as flash, fade, streamy, chase, etc.
12. Size: 162 x 123 x 53mm
13. Weight: 1.5 pounds
Features
1. 256 levels of grey, totally 16.77 million colors, really full color
2. Various output interface, XLR-3 Male & Female, RJ45
3. Good function at anti-jamming and auto-resumption
4. Convenient for wiring and installation
5. Can be re-programmed by software(optional)
6. Digital screen shows current status
7. Various modes with pause function
8. Eight different speed level
9. Automatic parameter memory
10. Wireless remote controller
11. Meets DMX512(1990)
Package Include:
1 Piece of DMX512 Controller DMX300 LED Full Color Controller
Some accessories as showing at following photo:
CE and RoHS approved
