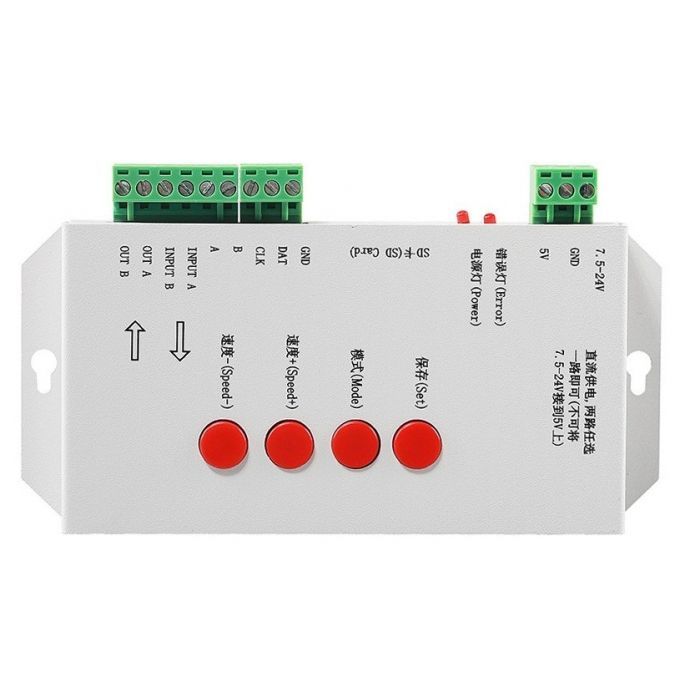

T-1000S SD Card Digital RGB LED 2048 Pixel Controller is a very powerful, smart and popular led controller.
It would control many rgb pixel lights.
Support IC type:
LPD6803, D705, 1101, 6909, 6912, 8806, 8809
TM1803, TM1804, TM1809, TM1812, TM1903, TM1904, TM1909, TM1912
UCS6909, UCS6912, UCS7009, UCS5903, UCS1903, UCS1909, UCS1912, UCS3903
DMX512, WS2801, WS2803, WS2811
DS189, P9813, SM16715, SM16716
BS0901, BS0902, BS0815
Features:
This controller runs at DC 7.5-24V using an onboard voltage regulator, or can be run off a single DC 5V source
if you're running DC 5V strips
Each controller can drive up to 2048 pixels using 256 brightness levels per color (24 bit color)
Using the LED Edit 2012 software you can even upload video to be converted and executed across LED strips
Support all the various rules-shape, special shape processing
Also includes a 256MB SD card with preloaded WS2801 effects to get you started
Off-line use, can most support playing 16 program which store in the SD card
Designed with buttons adjustment, through the buttons on the controller, you can adjust the playback speed
and choose the display program. Achieve to save the play list functions
Built-in lightning resistant and ESD protection circuit, ensure the safe and reliable
Package Included:
1 Piece of SD Card LED Controller
1 Piece of SD Card (editing software already in the card)
1 Piece of User's Manual
Click here to download T-1000S editing software
Here is connection of the SD Card Controller to the DC5V WS2801 IC Digital LED Strip:
CE and RoHS approved
