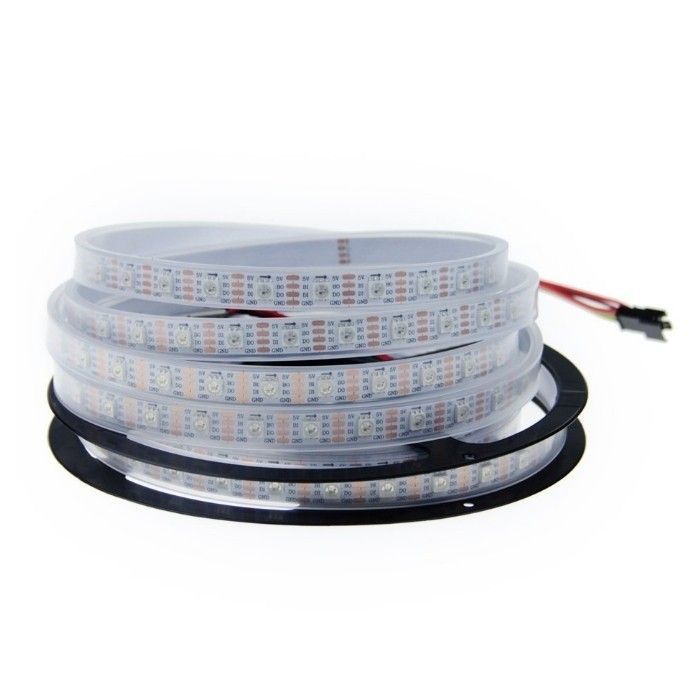

WS2813 DC 5V Dual-signal Wires RGB LED Pixel Strip 5M 300LEDs
One pixel damaged will not affect the other LEDs'working. This is individual chip control. If one pixel dies the rest stay on.
Dual signal wires version, signal can jump to transfer
LED light source: WS2813 LEDs
Input voltage:.............DC5v;
Power:.......................14.4watt/meter,72watt/roll;
LED resource:............. WS2813-RGB led(5050 SMD RGB LED with built-in improved version of WS2811S IC)
Same protocol as WS2811S but with Dual-signal wires,so can be controlled by the same WS2811 controllers
Q'ty of LED: ...............60leds/meter,300leds/roll, each LED is separately controlled
Q'ty of IC: ..................60IC/meter (1 IC drives 1 led chip);
Pixels:.........................60/meter;
Pitch: .........................16.66mm(1000/60);
Grey scale: ..................256;
Bits/color: ...................8-bits/color;24bit for RGB
FPC size: ....................Width: 10mm, High: 2.5mm;
FPC color: ...................Pls Choose, White PCB or Black PCB
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Colors: ........................Full color RGB, dream color changing;
Cuttable:......................every LED is cuttable;
Package: ....................5meters/reel in anti-static bag
recommand controllers:
T-1000s,T-8000A;T-100K;T-200K;T-300K
Package Included:
1 Roll of 5M (16.4ft) WS2813 DC 5V Dual-signal Wires RGB LED Pixel Strip 300LEDs
CE and RoHS approved
