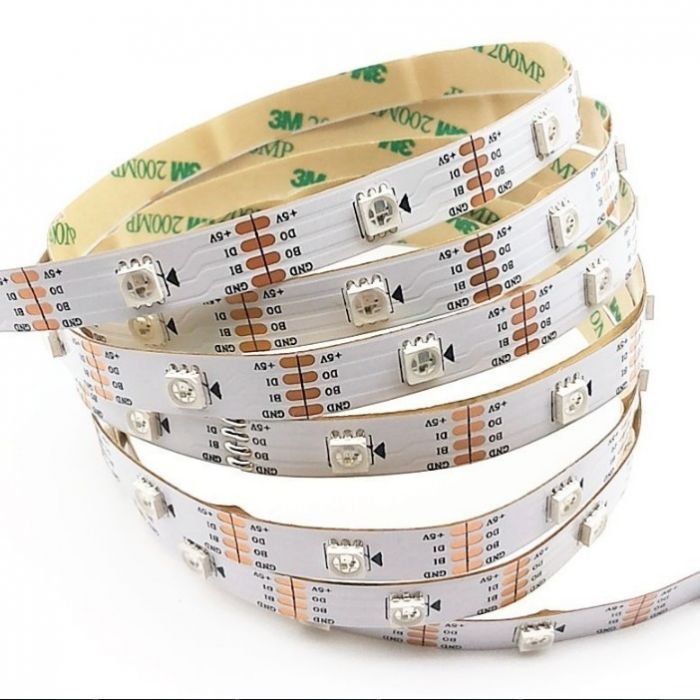

WS2813 DC 5V LED RGB Pixel Strip Dual-signal Wires 5M 150LEDs
one pixel damaged will not affect the other LEDs'working
Dual signal wires version, signal can jump to transfer
LED light source: WS2813 LEDs
Input voltage:.............DC5v;
Power:.......................7.2watt/meter,36watt/roll;
LED resource:............. WS2813-RGB led(5050 SMD RGB LED with built-in improved version of WS2811S IC)
Same protocol as WS2811S but with Dual-signal wires,so can be controlled by the same WS2811 controllers
Q'ty of LED: ...............30leds/meter,150leds/roll, each LED is separately controlled
Q'ty of IC: ..................30IC/meter (1 IC drives 1 led chip);
Pixels:.........................30/meter;
Pitch: .........................16.66mm(1000/60);
Grey scale: ..................256;
Bits/color: ...................8-bits/color;24bit for RGB
FPC size: ....................Width: 10mm, High: 2.5mm;
FPC color: ...................Pls Choose, White PCB or Black PCB
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Colors: ........................Full color RGB, dream color changing;
Cuttable:......................every LED is cuttable;
Package: ....................5meters/reel in anti-static bag
recommand controllers:
T-1000s,T-8000A;T-100K;T-200K;T-300K
Package Included:
1 Roll of 5M (16.4ft) WS2813 DC 5V LED RGB Pixel Strip Dual-signal Wires 150LEDs
CE and RoHS approved
